YC-RM062110 Robot

YC-RM062110 is a six-axis robot developed by Youcheng Company for complex applications requiring multiple degrees of freedom. With a long arm span of 2100mm and a maximum load capacity of 10kg, its six degrees of freedom enable flexible and efficient operations in scenarios like welding, loading/unloading, and assembly.

- Protection Level: Wrist IP54, body IP40, suitable for various industrial environments.

- Precision Advantage: Repeat positioning accuracy of ±0.05mm ensures high-quality fine operations.

    Contact us
    product details

    Application Scenarios

    This robot is applicable to multiple industrial scenarios, including:
    1. Material handling processes such as handling, stamping, and injection molding;
    2. Processing operations like grinding, cutting, and deburring;
    3. Assembly and surface treatment scenarios such as gluing, palletizing, and spraying.

    SPECIFICATION

    ROBOT
    product name ROBOT
    Model YC-RM062110
    Arm span lengthmm 2100mm
    number of axles six-axis robot
    payload weight 10kg
    repeated accuracy ±0/05mm
    Power 220v 6kw
    Net weight 230kg
    Gross weight 320kg
    packaging volume L1.36*W0.76*H1.58
    HS CODE 8479509090   ROBOT
    HS CODE 8428700000  magic hand

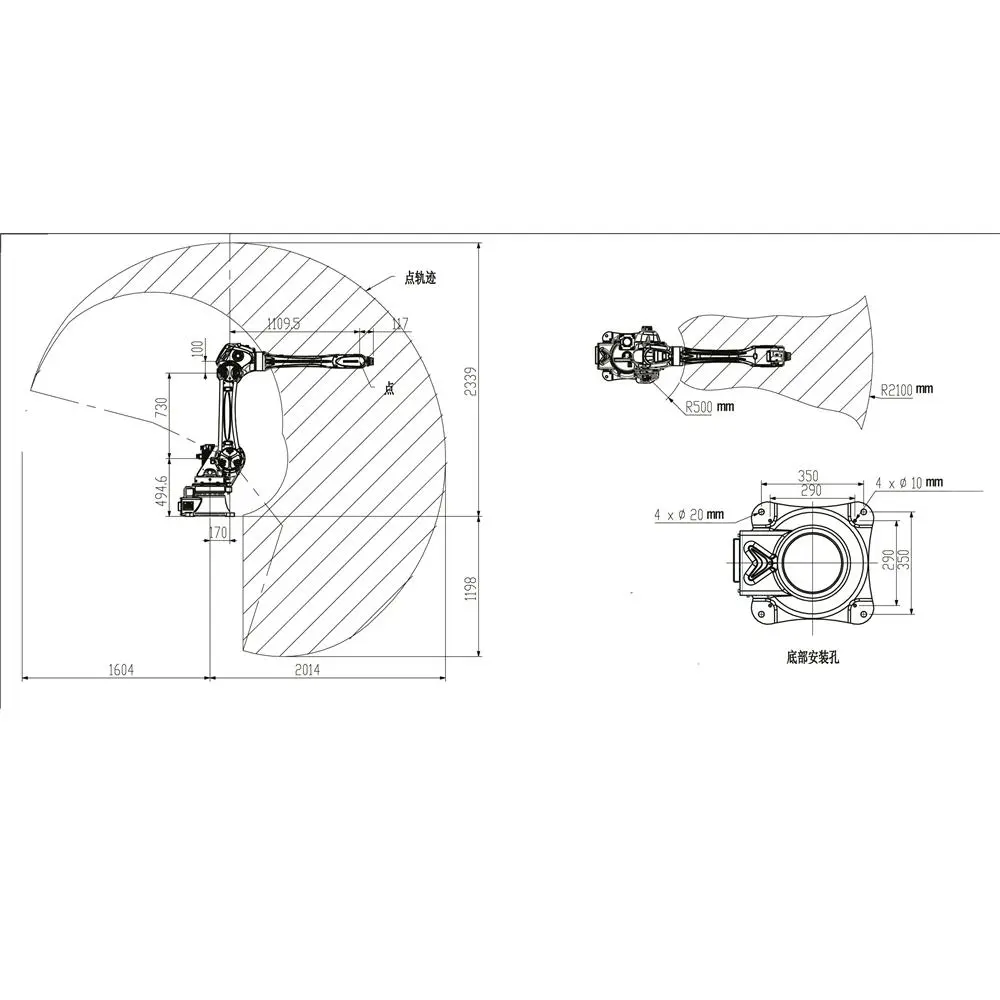

    Detail drawing

    jiqirenCAD
