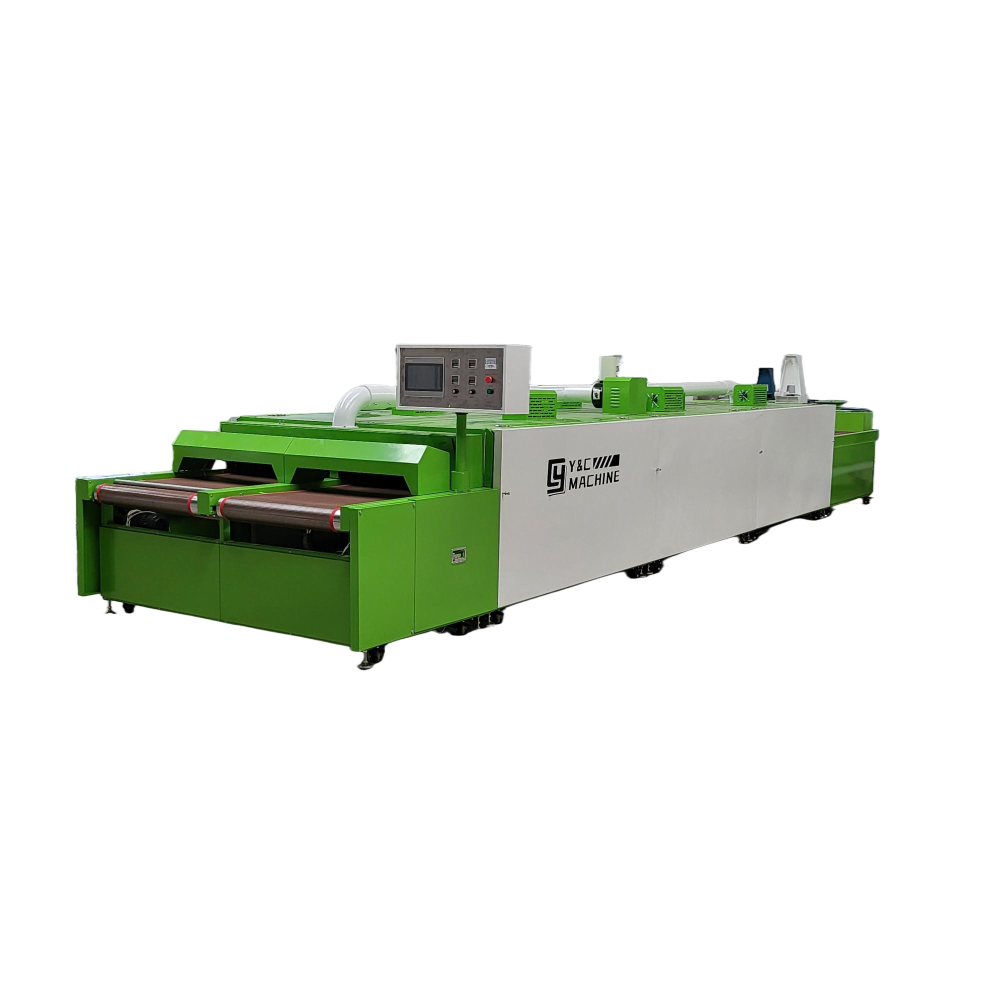

Double belt tunnel dryer TD8009
Features
1. Korea thermostat has four groups of temperature control system, independent control of each temperature zone, according to different ink temperature can be set differently.
2. Using South Korean heat pipe, heat treatment effect is good, constant temperature lasting, energy saving and environmental protection.
3. The box is equipped with a circulation system of uniform temperature
4. Both ends of the box are equipped with exhaust systems to prevent harmful gases from leaking out.
5. The outlet is equipped with cooling system to prevent hot hands.
6. The operation parameters of the equipment are controlled by the touch screen, which is easy to operate.
7. The mesh belt is equipped with an automatic correction device to prevent skew wear of the mesh belt.
8. The net belt frequency conversion speed regulation, double net belt speed independent control, according to different ink speed requirements.

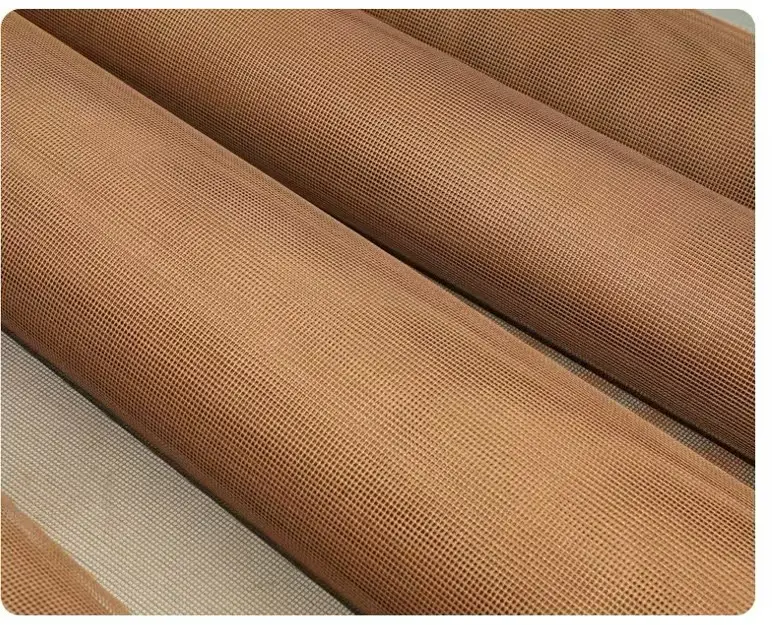

9. Double mesh belt thickening material customization, anti-static high temperature resistance, long service life.
SPECIFICATION
| Name | Double belt tunnel dryer | |||
| Model | YC-TD8009-2 | |||
| Heating area | 6 m | |||
| Width of Belt | 80cm | |||
| Total Length | 9m | |||
| Total Width | 2.65m | |||
| Input size | 1.8m | |||
| Output size | 1.2m | |||
| Heating Pipe | 27PCSx2 /18PCSX2 | |||
| Temperature | 50-200°C | |||
| Way of cooling | Air cooling | |||
| Speed | 10m/min | |||
| Belt Adjuster | automatic skew detection | |||
| container | 20FT x 1 | |||
| Gross Power | 380v60kw | |||
| Packing Volume | 25CBM | |||
| Gross Weight | 2550kg | |||
| Configuration and function | 1.Korea thermostat independent temperature control Using Korean heat pipe, temperature difference is small, constant temperature lasting 2.The box body is equipped with a circulating system with uniform temperature 3. both ends of the box body are equipped with exhaust system to prevent harmful gas outflow 4. The exit is equipped with cooling system to prevent hot hands. 5. The operation data of the equipment is controlled by touch screen, easy to operate. 6. The net belt is equipped with automatic correction device to prevent the net belt deviation wear. 7. Net belt frequency conversion speed regulation, independent control |
|||

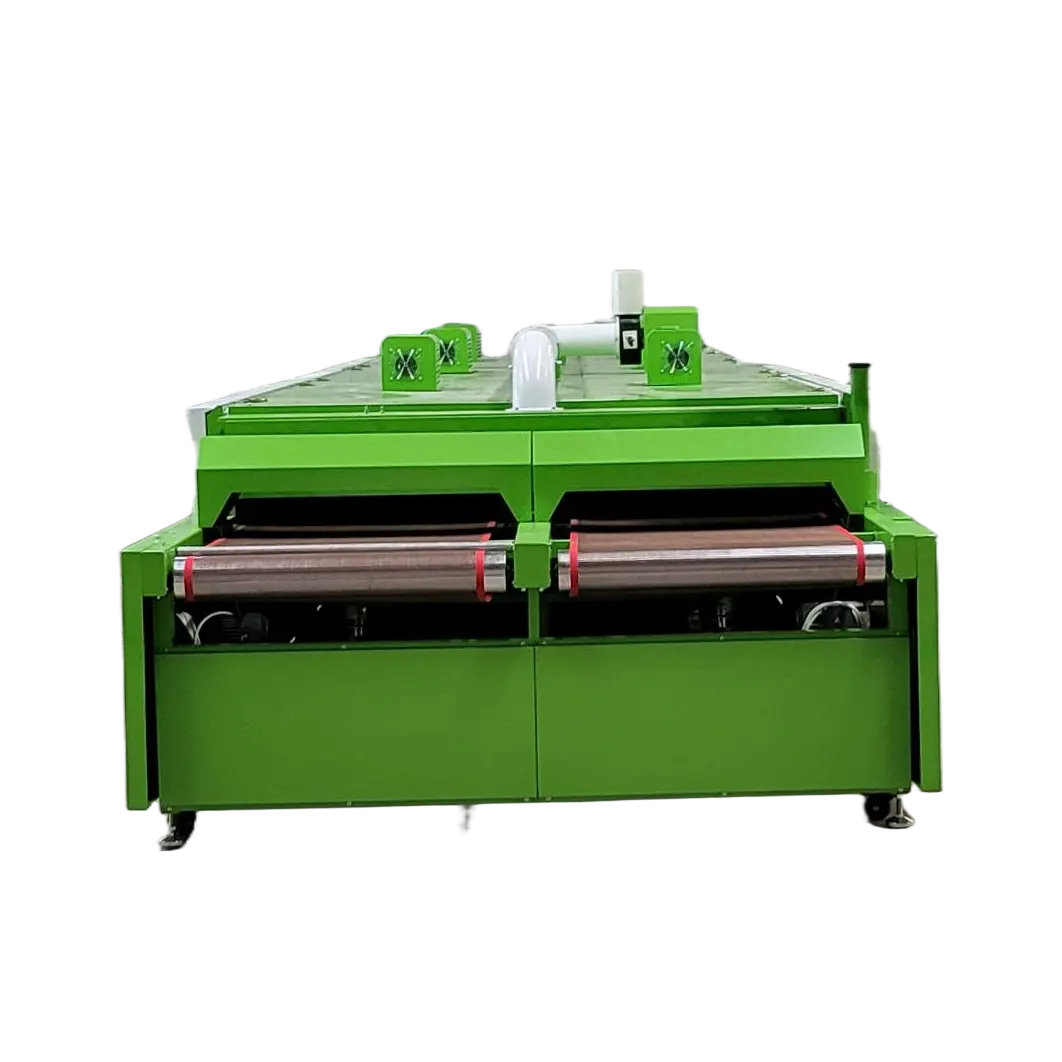

Detail drawing
